An affordable DR solution, both for integration with DEL MEDICAL and retrofit to any radiographic system

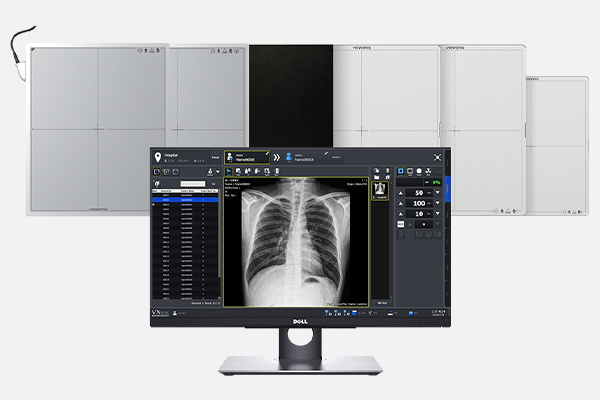

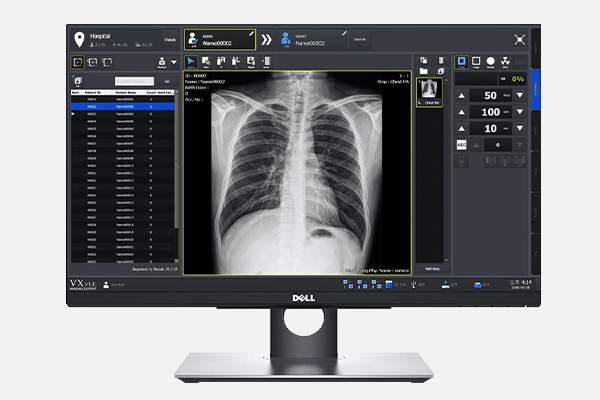

Vieworks VIVIX-S DR Systems offer a complete x-ray imaging solution by combining versatile detector options and the easy-to-use VXVue acquisition software. VIVIX-S detectors feature AED (Auto Exposure Detection), an internal Access Point, and internal storage capacity to ease installations and deliver the ultimate radiographic flexibility. VIVIX-S DR Systems utilize cassette-size detectors making upgrades for both human and veterinary applications quick and easy.
Vieworks QXLink 3 PACS Software can be added to any system to streamline the imaging process and speed up workflow.

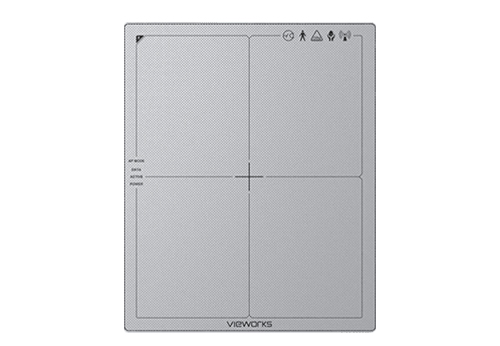

A 10 x 12 in (24 x 30 cm) flat panel detector ideal for small anatomy and pediatric imaging

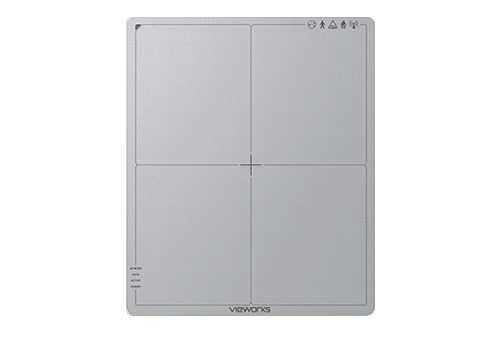

Ultra lightweight 14 x 17 in (35 x 43 cm) detector with supreme image quality

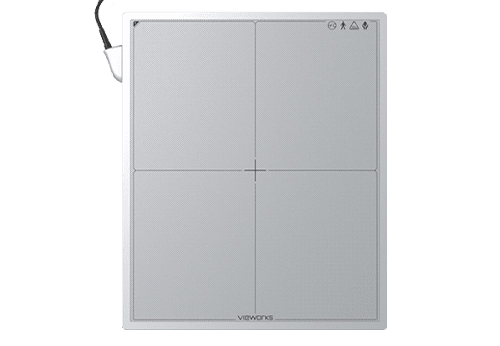

Lightweight, wired 14 x 17 in (35 x 43 cm) flat panel detector

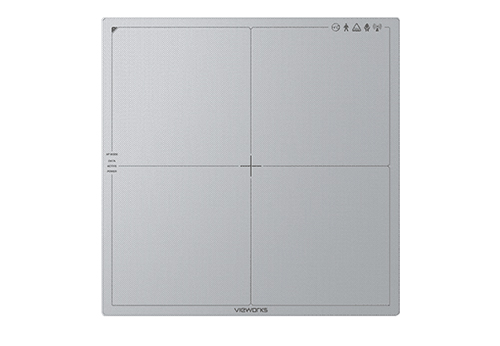

Wireless 17 x 17 in (43 x 43 cm) flat panel detector with a wide active area

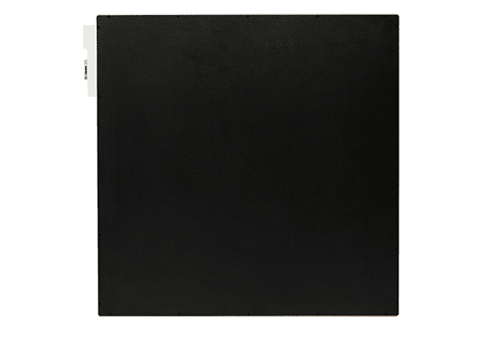

Fixed 17 x 17 in (43 x 43 cm) detector for digital radiography

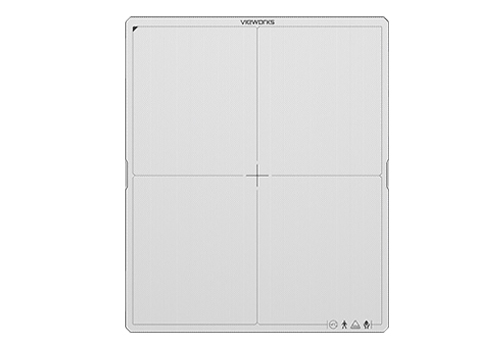

Wireless portable 10 x 12 in (25 x 32 cm) flat panel detector for digital radiography

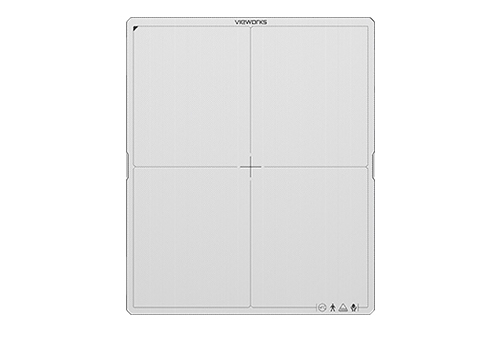

Wireless portable 14 x 17 in (35 x 43 cm) flat panel detector for digital radiography

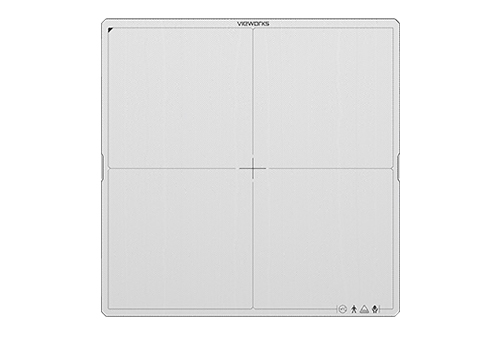

Wireless portable 17 x 17 in (43 x 43 cm) flat panel detector for digital radiography
In order to provide high image quality, a detector should respond quickly with an x-ray generator. Vieworks’ stable and reliable AED function enables users to operate the detector without any wire connection or electronic interface with an x-ray generator

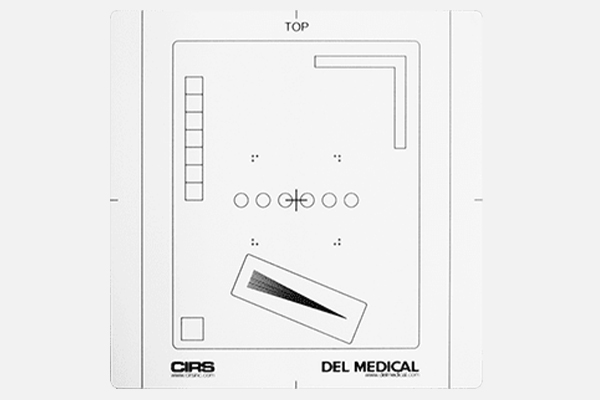

The DR QC Phantom allows comprehensive quality assurance testing for DR Detectors and associated software. The phantom enables seven quality assurance assessments for monthly and semi-annual evaluation, including exposure linearity and sensitivity, high and low contrast reproducibility, artifact and residual image detection, image resolution, collimator beam alignment, measurement tool accuracy, and display jitter QA testing.
| Detector | ||||||||
|---|---|---|---|---|---|---|---|---|
| Detectors | 1012NAW/BW | 1417NA/B | 1417SA/B | 1717NA/B | 1717V | 2350VAW / 2530VAW PLUS | 3643VAW / 3643VAW PLUS | 4343VAW / 4343VAW PLUS |
| Detector Size | 10 X 12 in (24 x 30 cm) | 14 x 17 in (35 x 43 cm) | 14 x 17 in (35 x 43 cm) | 17 x 17 in (43 x 43 cm) | 17 x 17 in (43 x 43 cm) | 10 x 12 in (25 x 32 cm) | 14 x 17 in (35 x 43 cm) | 17 x 17 in (43 x 43 cm) |
| Scintillator | Cesium Iodide (CsI) Gadolinium Oxysulfide | Cesium Iodide (CsI) Gadolinium Oxysulfide | Cesium Iodide (CsI) Gadolinium Oxysulfide | Cesium Iodide (CsI) Gadolinium Oxysulfide | Cesium Iodide (CsI) Gadolinium Oxysulfide | Cesium Iodide (CsI) | Cesium Iodide (CsI) | Cesium Iodide (CsI) |
| Connection Type | Tethered / Wireless | Tethered / Wireless | Tethered | Tethered / Wireless | Fixed | Tethered / Wireless | Tethered / Wireless | Tethered / Wireless |
| Pixel Matrix | 2048 x 2560 | 2560 x 3072 | 2560 x 3072 | 3072 x 3072 | 3072 x 3072 | 2048 x 2560 | 2560 x 3072 | 3072 x 3072 |
| Pixel Pitch | 124 μm | 140 μm | 140 μm | 140 μm | 140 μm | 124 μm | 140 μm | 140 μm |
| Dimensions | 13.8 x 11.2 x 0.6 in | 15 x 18 x 0.6 in | 15 x 18 x 0.6 in | 18 x 18 x 0.6 in | 18 x 18 x 0.6 in | 11.3 x 13.8 x 0.6 in | 15 x 18 x 0.6 in | 18 x 18 x 0.6 in |
| Weight | 4.8 lbs | 6.4 lbs | 7 lbs / 6.8 lbs | 9.8 lbs | 9.9 lbs | 4.3 / 4.6 lbs | 6.5 / 6.8 lbs (one battery) 6.9 / 7.3 lbs (two batteries) | 7.6 / 8.2 lbs (one battery) 8 / 8.6 lbs (two batteries) |
| Bit Depth (A/D) | 16-bit | 16-bit | 14-bit | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit |
| Image Display | 3 seconds / 1.5 seconds | 3 seconds / 1.5 seconds | 1.2 seconds | 3 seconds / 1.5 seconds | 2 seconds | 3 seconds | 3 seconds | 3 seconds |
| Cycle Time | 15 seconds | 10 seconds | 15 seconds | 15 seconds | 15 seconds | 4 seconds | 4 seconds | 4 seconds |
| Limiting Resoultion | 4 lp/mm | 3.5 lp/mm | 3.5 lp/mm | 3.5 lp/mm | 3.5 lp/mm | 3.5 lp/mm | 3.5 lp/mm | 3.5 lp/mm |
| Battery | Lithium Ion 3,100 mAh | Lithium Ion 3,100 mAh x 2 | N/A | Lithium Ion 3,100 mAh x 2 | N/A | Lithium Ion 3,400 mAh x1 | Lithium Ion 3,400 mAh x2 | Lithium Ion 3,400 mAh x2 |
