Comprehensive veterinary imaging solutions designed for efficiency and cost-effectiveness
The Universal Veterinary system is a state-of-the-art solution designed to elevate the precision and efficiency of veterinary diagnostic imaging. Engineered for user-friendly operation, the imaging table facilitates easy patient positioning with simplified controls for swift and accurate adjustments. Boasting a robust construction, it supports a high patient capacity of up to 400 lbs (181 kg), ensuring compatibility across a diverse range of animal sizes.

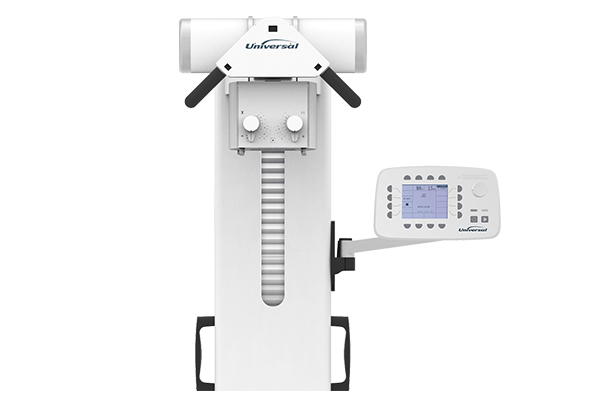

The Universal Veterinary System features an angulating tube arm, 2-way or 4-way float top table, and can be configured with a fixed or variable SID tube stand. The variable option allows for a greater range of motion that provides technologists with enhanced patient positioning.
The inclusion of urine trap perimeters contributes to a hygienic imaging environment by effectively managing fluids during procedures. The Universal Veterinary system offers a compact footprint of 38.5 x 56 in (99 x 143 cm) in fixed and 2-way float-top table, or 38.5 x 68.5 in (98 x 174 cm) with a 4-way float-top table, offering a spacious surface for patient positioning that allows for precise adjustments to meet various imaging needs.

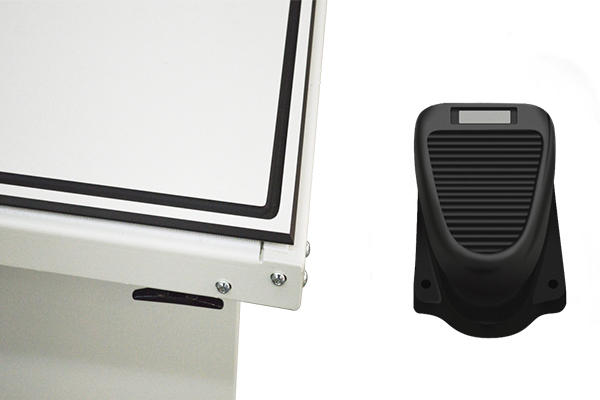

Additionally, the hands-free operation, facilitated by foot-activated table top release strips, enhances procedural efficiency, allowing veterinarians to focus on patient care without manual adjustments. The Universal Veterinary system combines adaptability, efficiency, and hygiene to provide veterinary professionals with a reliable tool for diagnostic imaging in diverse clinical settings.

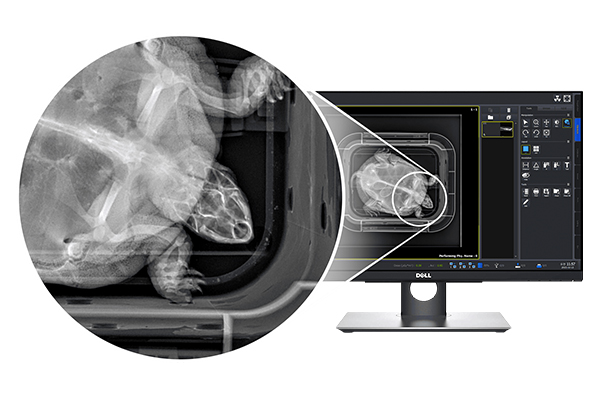

The Vieworks VXView image acquisition software produces images with exceptional
clarity and resolution, perfect for even the smallest animal anatomy.
> Vieworks DR
| Universal Veterinary | |
|---|---|
| Patient Load Capacity | 400 lbs (181 kg) |
| Tabletop Length (Stationary / 2-way Float) | 56 in (142 cm) |
| Tabletop Width (Stationary / 2-way Float) | 28 in (71 cm) |
| Tabletop Length (4-way Float) | 68.5 in (174 cm) |
| Tabletop Width (4-way Float) | 31.5 in (79 cm) |
| Tabletop Height | 34.75 in (89 cm) |
| Tube Stand Height |
Fixed: 77 in (196 cm) Variable: 83 in (211 cm) |
| System Depth | 38.5 in (98 cm) |
| Tube Head Angulation | ±45° |
| Table Voltage | 24 VDC |
