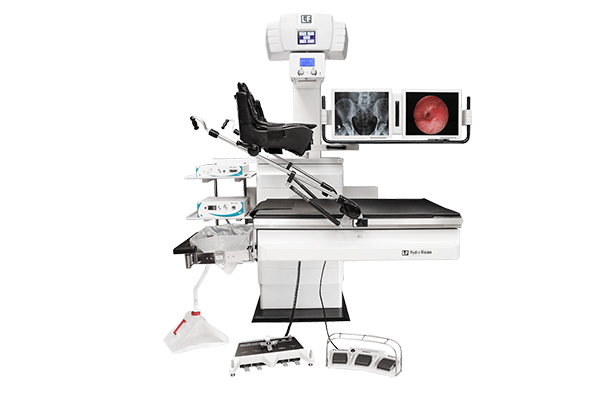

A new Urology Solution by Del Medical, formerly manufactured by LF™, Liebel-Flarsheim™

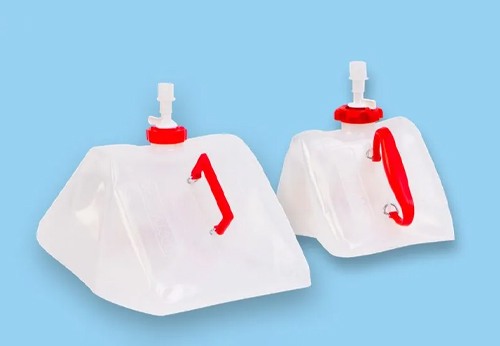

The Fluidrain LSS container allows quick and easy collection of fluids for disposal when a floor drain is not present or permitted.

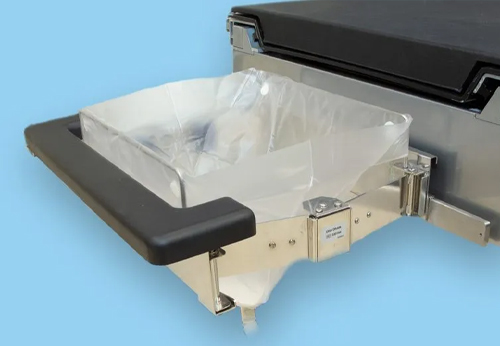

The uro drain bag is a disposable liner for the uro drain frame. Expandable tubing stretches to approximately 6 feet (182.9 cm) in length. Available in sterile or non-sterile packaging.

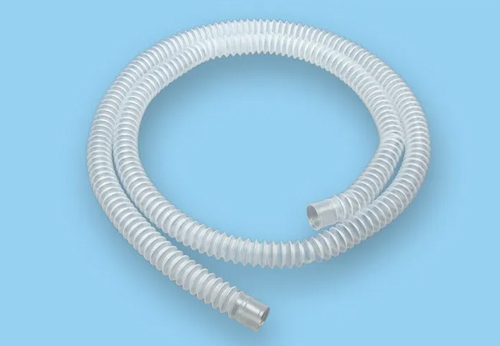

Used in conjunction with the uro drain bag, the extension tubing adds approximately 6 feet (182.9 cm) to the uro drain bag tube, for a combined length of approximately 12 feet (365.8 cm).

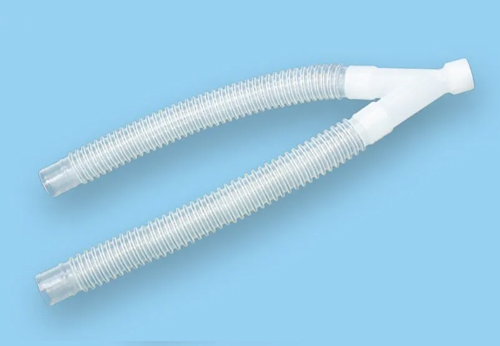

The uro drain y-connector allows the attachment of multiple Fluidrain LSS containers for procedures requiring high fluid volumes.

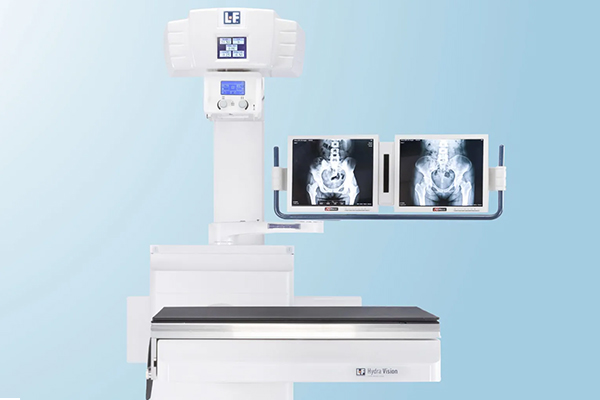

| Hydra Vision | |
|---|---|
| Table Elevation Range | 31.5 – 50 in (78.7 – 127 cm) @ up to 1 in (2.5 cm) per second |
| Table Tilt Range | -20 to +88 degrees @ up to 5 degrees per second |
| Imaging Window | 34 in (86 cm) of anatomy without moving the patient |
| Longitudinal Travel | ±9.5 in (24 cm) @ up to 1-1/2 in (3.8 cm) per second |
| Transverse Travel | ±6 in (15 cm) @ up to 1-1/2 in (3.8 cm) per second |
| Table Top Length | 43.5 in (110 cm) |
| Patient Weight Capacity | 750 lb (340 kg) |
| Weight (with Collimator and Tube) | 1900 lbs (862 kg) |
| Power Requirements |
Table: 220 VAC ±10%, single phase, 50/60 Hz Generator: 400 – 480 VAC, 3-phase, 50/60 Hz |
| PaxScan 4343CB | |
|---|---|
| Receptor | A-Si |
| Conversion Screen | CsI:TI |
| Pixel Area | 16.8 x 16.8 in (42.7 x 42.7 cm) |
| Pixel Matrix | 3072 x 3072 |
| Pixel Pitch | 139 um |
| Limiting Resolution |
3.6 lp/mm (1×1) 1.8 lp/mm (2×2) |
| MTF (1×1) at 1 lp/mm | 54% |
| DQE (1×1, quantum-limited) at 0 lp/mm | 74% |
| Non-Uniformity | 1% maximum |
| Inactive Lines | Less than or equal to 9 total rows and columns, minumum separation 16 lines |
| Inactive Pixels | No inactive visible pixels after interpolation |
| Cooling | Air Cooling |
| Radiation Tolerance | 2000 Gy (active area) |
| Weight | 13 kg |
