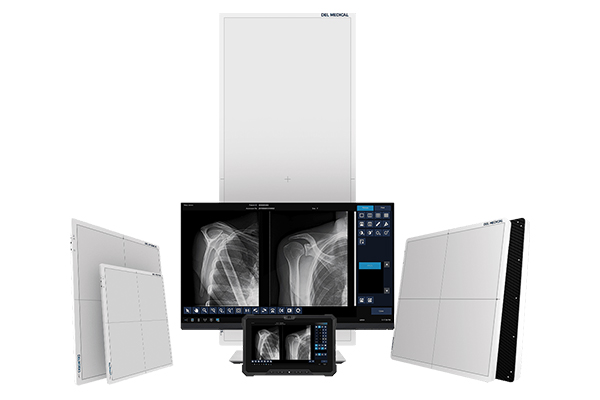

Intuitive, powerful, wireless DR with lightweight detectors, for easy retrofits to any radiographic system, and seamless integration in DEL MEDICAL systems
DELWORKS is a powerful image acquisition and processing software featuring a user-friendly interface that provides sophisticated and speedy medical imaging. Designed with complex system automation, DELWORKS aims to simplify the examination process by making difficult decisions for you.
Its advanced anatomical programming and image processing algorithms help optimize technologist productivity. DELWORKS strives to minimize human error and unwanted repeat exams to give technologists high-quality images at a lower dose, with every exposure.
Pre-exposure display of patient and procedure information, x-ray generator exposure
factors, status and control functions integrated into a single display screen
Positioning guide: queues proper positioning for each view
Deviation Index (DI): standard reporting to assist in dose minimization
Exam-specific image processing algorithms automatically optimize images based on
selected patient anatomy
Enhanced image processing parameters: APR specific default values and manual
adjustment, if desired
Full array of measurement tools
Easy verification and correction of image laterality and patient orientation
Intuitively add orientation markers and text comments directly to acquired images
(pre-defined or free text)
PICC tool applies enhanced processing to images for better visualization of leads,
lines, or tubes
Effective management, analysis, and reporting of rejected images
Detailed histograms of pixel density
User selection of modified LUT (Look-Up Table) based on various exam types
Manual adjustment of the LUT, window, and level

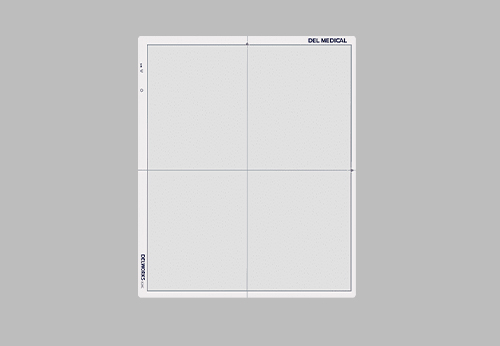

Ultra-light, glass-free portable 10 x 12 in (24 x 30 cm) Cesium wireless detector with outstanding image quality that offers the compact versatility needed to optimize workflow.

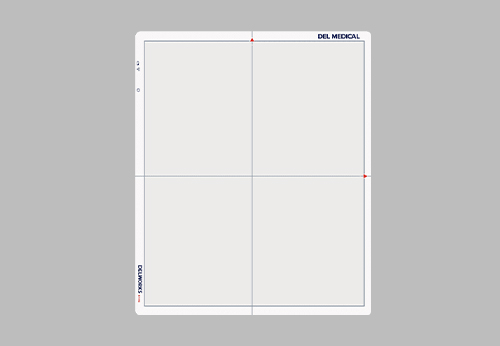

Ultra-light, glass-free portable 14 x 17 in (35 x 43 cm) detector with outstanding image quality that offers the compact versatility needed to optimize workflow.

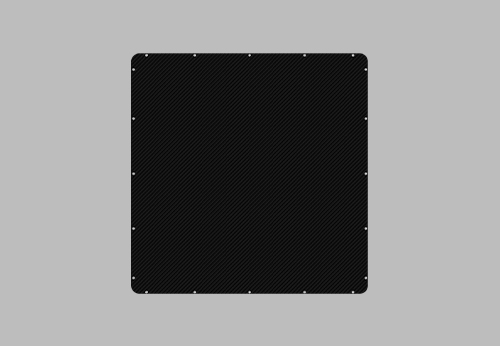

A large-format, glass-free lightweight 17 x 17 in (43 x 43 cm) Cesium wireless detector designed to efficiently minimize technologist interaction with upright exams in both a dual or a multi-detector configuration

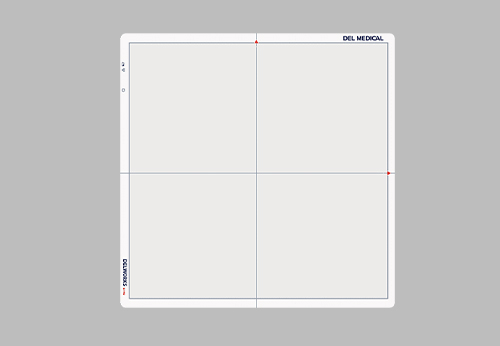

A large-format 17 x 17 in (43 x 43 cm) fixed detector designed to efficiently minimize technologist interaction with upright exams in both a dual or a multi-detector configuration
Monolithic long length 17 x 42 in (43 x 107 cm) detector for full spine and long leg imaging eliminates potential stitching misalignments, improves workflow, and decreases the patient dose
DELWORKS E-Series Wireless Detectors feature EasyConnect — an Auto Exposure Detection (AED) technology that keeps the detector in a standby mode, awaiting exposure from any X-ray source. Once an exposure is detected it instantly captures the x-ray image and transmits it wirelessly to the system workstation
Detectors can be shared between multiple DELWORKS workstations, enhancing workflow, equipment utilization, and economic feasibility
Some examples for reference:

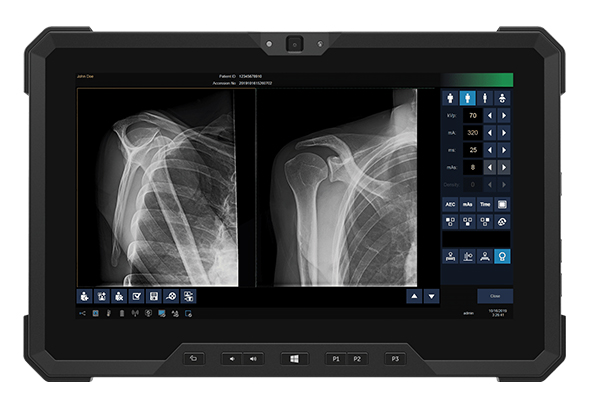

The DELWORKS FIT Portable Tablet Workstation aims to maximize the portability and efficiency of the DELWORKS software — utilizing it anytime, anywhere.
The user-friendly features of the DELWORKS software are beautifully translated to a rugged tablet PC, capable of withstanding even the harshest radiology (or non-radiology) environments. This handheld workstation features wireless connectivity, plenty of robust, secure solid-state storage space, and a powerful Intel® Core™ i5 processor to perform rapid and productive patient side studies, without limitations.

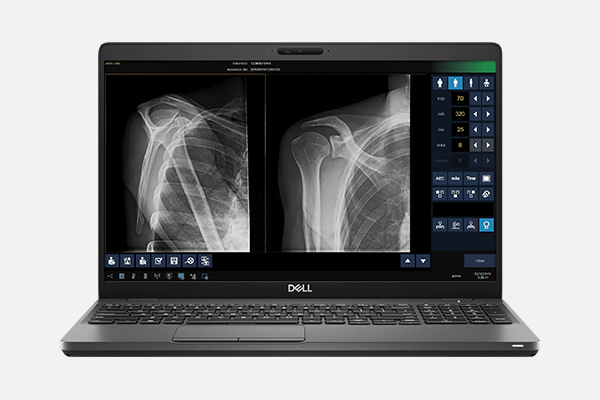

The DELWORKS Laptop is an option for those who prefer portability combined with built-in keyboard input. This system includes a robust 512 GB Solid State Drive (SSD) and a full HD 15.6” display for secure storage and outstanding image display quality.

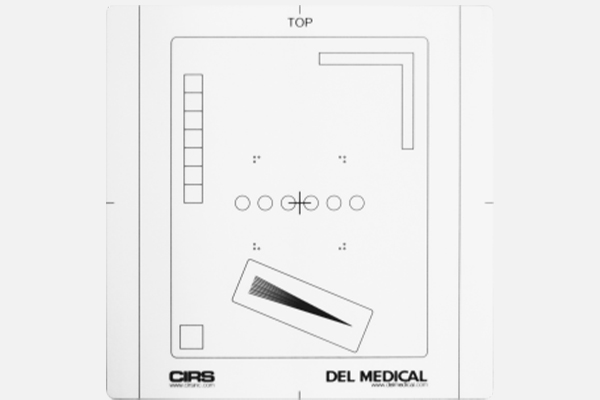

The DR QC Phantom allows comprehensive quality assurance testing for DR Detectors and associated software. The phantom enables seven quality assurance assessments for monthly and semi-annual evaluation, including exposure linearity and sensitivity, high and low contrast reproducibility, artifact and residual image detection, image resolution, collimator beam alignment, measurement tool accuracy, and display jitter QA testing.
| Detectors | |||||
|---|---|---|---|---|---|
| Detectors | E24Cw2 | E14Cw2 | E17Cw2 | E17C | LLI |
| Scintillator | Cesium Iodide (CsI) | Cesium Iodide (CsI) | Cesium Iodide (CsI) | Cesium Iodide (CsI) | |
| Detector Technology | a-SI | a-SI | a-SI | a-SI | a-SI |
| Active Image Area | 10 x 12 in (24 x 30 cm) | 14 x 17 in (35 x 43 cm) | 17 x 17 in (43 x 43 cm) | 17 x 17 in (43 x 43 cm) | 17 x 42 in (43 x 107 cm) |
| Pixel Size | 99 μm | 99 μm | 99 μm | 148 μm | 139 μm |
| A/D Conversion | 16 bits | 16 bits | 16 bits | 16 bits | 16 bits |
| DQE @ 0 lp/mm | 70% | 70% | 70% | 65% (DQE @ 0.05 lp/mm) | 0.67/0.71/- |
| X-Ray Generator Voltage | 40 – 150 kV | 40 – 150 kV | 40 – 150 kV | N/A | 40 – 150 kV |
| Spatial Resolution | 3.5 lp/mm | 3.5 lp/mm | 3.5 lp/mm | 3.5 lp/mm | 3.6 lp/mm |
| Auto Exposure Detection (AED) | Full-field | Full-field | Full-field | No | Yes |
| Data Interface | IEEE 802.11 ax NFC & Infared | IEEE 802.11 ax NFC & Infared | IEEE 802.11 ax NFC & Infared | Ethernet cable | Ye802.11/a/b/g/n 2.4 / 5 GHz or ethernet cable |
| Weight | 3.5 lbs (1.6 kg) | 5.3 lbs (2.4 kg) | 5.3 lbs (2.4 kg) | 25.8 lbs (11.7 kg) | 22 lbs (10 kg) |
| Desktop Workstation | |
|---|---|
| Processor | 3.2 GHz Intel® Core™ i5-6500 |
| Memory | 16 GB RAM |
| Hard Disk Drive | 1 TB 7200 RPM |
| Operating System | Windows 10 Pro (64-bit) English |
| Dimensions | 3.7 x 11.4 x 11.5 in (9.3 x 29 x 29.2 cm) |
| Weight | 11.57 lbs (5.26 kg) |
| Desktop Workstation (Monitor) | |
|---|---|
| Display Type | IPS LED-backlit LCD monitor /TFT active matrix touchscreen |
| Diagonal Size | 24 in (61 cm) |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Pixel Pitch | 0.275 mm |
| Dimensions |
With stand: 21.2 x 9.3 x 12.7 in (53.8 x 23.6 x 32.3 cm)
Without stand: 21.2 x 2.1 x 12.6 in (53.8 x 5.3 x 32 cm) |
| Weight | 6.88 lbs (3.12 kg) |
| Tablet Workstation | |
|---|---|
| Processor | 1.7 GHz Intel® Core™ i5 |
| Memory | 8 GB RAM |
| Hard Disk Drive | 256 GB Solid State Drive (SSD) |
| Operating System | Windows 10 Pro (64-bit) English |
| Display |
11.6″ Full HD Touchscreen w/ Gorilla Glass (1920 x 1080, Outdoor-Readable / Glove Capable) |
| Keyboard / Input | Touchscreen |
| Battery | 2-cell (34 Wh) Lithium-Ion battery |
| Dimensions | 12.3 x 8 0.96 in (31.2 x 20.3 x 2.4 cm) |
| Weight | 2.82 lbs (1.3 kg) with single 2-cell battery |
| Laptop Workstation | |
|---|---|
| Processor | 3.0 GHz Intel® Core™ i5 |
| Memory | 8 GB RAM |
| Hard Disk Drive | 512 GB Solid State Drive (SSD) |
| Operating System | Windows 10 Pro (64-bit) English |
| Display Type | Anti-glare non-touch display |
| Diagonal Size | 15.6 in (39.6 cm) |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Wireless | 802.11ac Dual-Band Wireless Adapter (WLAN) |
| Battery | 3-cell (51 WH) Lithium-Ion battery |
| Power Adapter | 65W AC adapter with E5 US power cord |
| Dimensions | 14.1 x 0.79 x 9.3 in (35.8 x 2 x 23.6 cm) |
| Weight | 4.03 lbs (1.82 kg) |
