The AlphaNovoCAM 3MOS HD offers excellent resolution and provides, due to its latest MOS technology, bright and clear high definition pictures of high detail fidelity that allow visualizing even detailed structures.
The integrated digital image processor ensures consistent high quality images of remarkable contrast and natural colours. The enhanced photosensitivity and continuous automatic brightness control always guarantee a continuous image quality for reliable diagnoses and precise OR procedures.
All AlphaNovoCAM 3MOS HD essential functions and parameters can be adjusted in the on-screen menu mode to meet the specific requirements of each individual surgeon. The reset function easily returns the system to the factory settings.

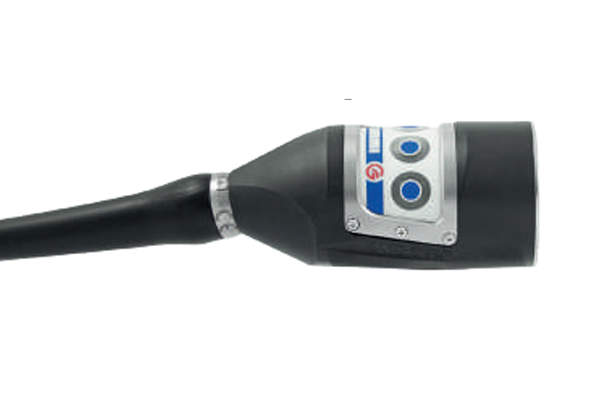

Small and lightweight camera head
which is fully waterproof
Immersible cable
included
3 programmable
buttons: 6 functions
Plasma or
peracetic acid sterilization
Full HD
resolution, 16:9,
1920 x 1080 px
On-screen menu,
multilingual
USB archiving
interface (optional)
Freeze function
High-end video
image quality
High speed
shutter
Digital signal
processing
Title generator &
remote control
Digital zoom
User settings can
be stored,
up to 3 individual settings
| Technische Eigenschaften | |
|---|---|
| Line voltage | 100-240 Vac |
| Sensor | 3MOS |
| TV system | Progressive scan at 50/60 Hz |
| TV resolution | 1600 TV lines, horizontal |
| Image resolution | 1920 x 1080 px (Full HD) |
| Aspect ratio | 16:9 |
| Outputs digital |
1x HDMI (HDMI/DVI) 2x HD-SDI |
| Outputs analog |
1x YPbPr/RGB 1x S-Video (Y/C, Pal/NTSC) 1x Video (CVBS, Pal/NTSC) |
| Archiving | 1x USB (A) (optional) |
| Interfaces |
1x USB (Type A) (USB-keyboard) 1x Remote IN (footswitch) 1x Remote OUT (video printer, video recorder) 1x RJ45 (service interface) |
|
Weight Control unit Camera head |
4.5 kg Approx. 145 g (w/o TV-coupler) |
|
Dimensions Control unit Camera head Camera head cable |
340 x 115 x 340 mm (W x H x D) Ø 38.5 mm, l = 81 mm l = 3 m |
| Ordering Data | |
|---|---|
| S.2002.30 USB | AlphaNovoCam 3MOS HD USB |
| S.2002.30 | AlphaNovoCam 3MOS HD |
| Including | Camera control unit, camera head with 3 m cable, mains cable, HDMI-DVI, HDMI, RGB, Y/C, BNC cables, USB flash drive (optional) |
| Optional Accessories / Spare Parts | |
|---|---|
| S.2002.37 | Additional camera head with 3 m cable |
| S.2000.71 IIA | Zoom TV-coupler with automatic locking, f = 15-35 mm |
| S.2049.04 | USB 3.0 flash drive* 64 GB |
| S.2095.05 US | Medical keyboard IP 68 (US Layout)* |
| S.2095.05 DE | Medical keyboard IP 68 (DE Layout)* |
| S.2020.12 | Footswitch* |
| Recommended Monitors | |
|---|---|
| S.0504.35 | 21” Monitor*, Sony LMD-2110MD, Full HD |
| S.0509.21 II | 26” Monitor*, Eizo EX2620 CuratOR, Full HD |
| S.0504.40 | 27” Monitor*, Sony LMD-2735MD, Full HD |
| S.0509.22 II | 32” Monitor*, Eizo EX3220 CuratOR, Full HD |
